SIMCOM LPWA Module NB-IoT Module SIM7020 SIM7020E GSM GPS GPRS Modules SIM7020C SIM7020G

Name: SIMCOM LPWA Module NBIoT Module SIM7020 SIM7020E GSM GPS GPRS Modules SIM7020C SIM7020G
Brand: SIMCOM
Price: 8.00 USD

Brand Name : SIMCOM

Model Number : SIM7020E

Place of Origin : China

MOQ : 10.0 pieces(Min. Order)

Price : $8.00 - $12.00/piece

Supply Ability : 5000 Piece/Pieces per Week

Delivery Time : 1-200/3 days;51-100/ 8 days; >100/To be negotiated

Packaging Details : Export standard pack

Contact Now

Products Description

Part name	SIM7020E
Package	Standard
Warranty	365days
Condition	original new

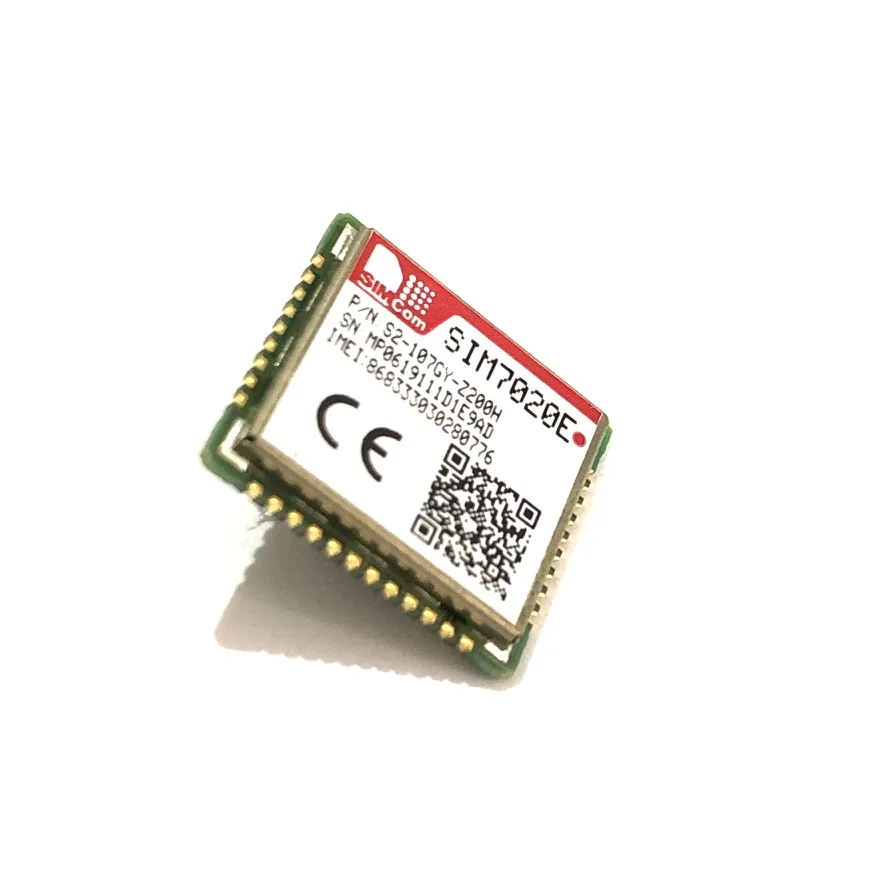

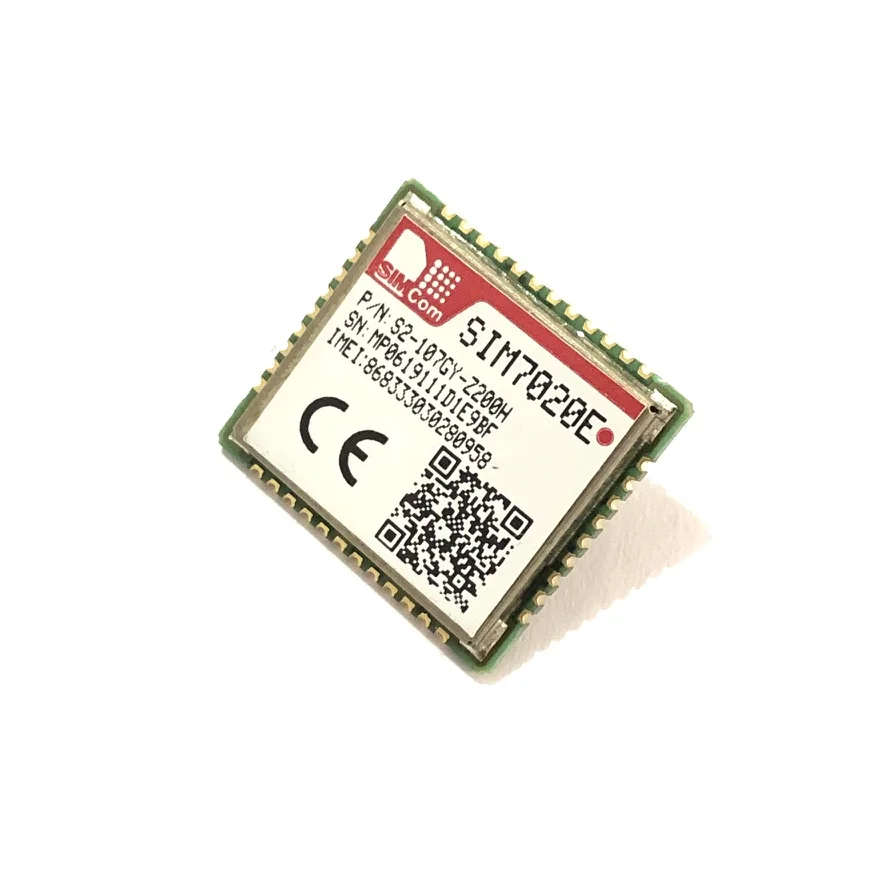

SIMCOM LPWA Module SIM7020E

The SIM7020 is a Multi-Band NB-IoT module solution in an SMT type. It has strong extension capability with rich interfaces
including UART, GPIO, etc. The module provides much flexibility and ease of integration for customer's applications.

* The package of SIM7020 is compatible with SIM800C. This also minimizes the investments of customers and enables a short time-to-market. It is designed for applications that need low latency and low throughput data communication in various radio propagation conditions.

* Due to the unique combination of performance, security, and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health, etc...

SIMCOM LPWA Module NB-IoT Module SIM7020 SIM7020E GSM GPS GPRS Modules SIM7020C SIM7020G

Advantages
1. With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020 can extend battery life to 10 years；
2. SIM7020 provides deeper coverage enhancement compared to GSM；
3. The package and AT commands of SIM7020 are mostly compatible with SIM800C.

General Features
SIM7020C: LTE-FDD:B1/B3/B5/B8

SIM7020E: LTE-FDD:B1/B3/B5/B8/B20/B28

Control Via AT Commands
Supply voltage range: 2.1V-3.6V
Operation temperature: -40℃ to +85℃
Dimensions: 17.6 X 15.7 X 2.3mm
Weight: 1.3g

Data
Uplink: 62.5Kbps
Downlink:26.15Kbps

SMS
Text and PDU mode

Consumption
PSM: 3.4 uA
sleep: 0.4mA
Idle: 5.6mA
eDRX: 30uA (eDRX=655.36s)

Other Features
Firmware update via UART
TCP/UDP
HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING
LWM2M/COAP/MQTTS
OneNET/CT Cloud/Aira Cloud*
Ayla Cloud/Ali Cloud(SIM7020E)
FOTA
EAT

Interfaces
CART
SIM card (1.8V/3V)
Embedded SIM IC (SIM7020E Optional)
GPIO
ADC
Netlight
PSM_EINT
Reset
Powerkey

Certifications
SIM7020C:
CCC/TA/CTA/RoHS/REACH/ATEX/China Telecom/China Mobile/China Unicom

SIM7020E:
CE/RoHS/REACH/GCF*/ATEX/IMDA
